Piston Cylinder Actuator
Home > Products > Piston Cylinder Actuator

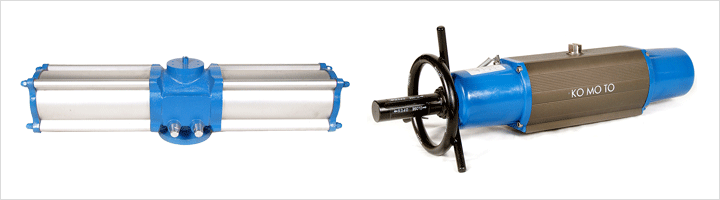

Spring return / Double Acting Cylinder Actuator
The Series 3800 Rotary piston actuator are designed to operate rotating valves, such as Ball valves, Butterfly valves and Plug valves for throttling or on-off service. Specially, heavy actuator is unique linkage type which converts linear motion torque at beginning which usually corresponds to the closed position of valves, and another peak of torque is produced at 60 degree of valves which correspond to the dynamic torque.
>> Specifications
| Actuator Type | Spring return / Double Acting Cylinder Actuator | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Actuator Model | 3800, 1600, 1700 | |||||||||
| Actuator Size | AC 05 | AC 06 | AC 08 | AC 10 | AC 12 | AC 14 | AC 17 | AC 20 | AC 25 | AC 30 |
| Air Supply Range | Standard: 5.0 kg/cm2G, Range: 3.5~6.0kg/cm2 | |||||||||
| Spring Range | 2.0 ~ 3.0 kg/cm2G | |||||||||
| Environment Conditions | Max. working pressure: 6.0 kgf/cm2G, Max. working temperature: -40 ~ 120 ¡É | |||||||||
| Body Material | ASTM 6063 / FCD450 | |||||||||
| Movement | Rotary (3800&3900), Reciprocate (Piston cylinder, 1600&1700) | |||||||||
| Option | Side mounted handwheel, Hydrolic unit, Volume tank | |||||||||
